CCG series
TDK-Lambda
Features
•  15 to 30W DC-DC Converters
•  Single Output / Dual Output
•  Isolated
•  Industry Standard 1 x 1” Footprint
•  Wide Range DC Input 9 - 36 or 18 - 76V
•  High Effi ciency - Up to 92%
•  Six Sided Shielding

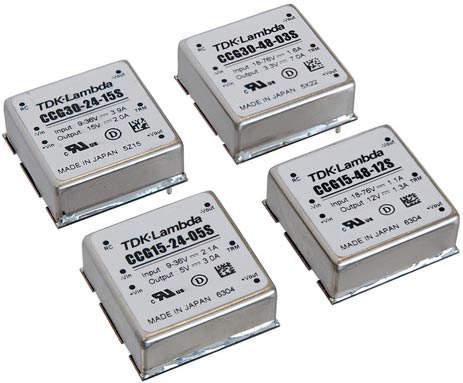

CCG15 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG15-24-03S
9~36VDC
3.3V / 3A
13.2W
  spec
  out
CCG15-24-05S
9~36VDC
5V / 3A
15.0W
  spec
  out
CCG15-24-12S
9~36VDC
12V / 1.3A
15.6W
  spec
  out
CCG15-24-15S
9~36VDC
15V / 1A
15.0W
  spec
  out
CCG15-24-12D
9~36VDC
24V / 0.65A
15.6W
  spec
  out
CCG15-24-15D
9~36VDC
30V / 0.5A
15.0W
  spec
  out
CCG15-48-03S
18~76VDC
3.3V / 4A
13.2W
  spec
  out
CCG15-48-05S
18~76VDC
5V / 3A
15.0W
  spec
  out
CCG15-48-12S
18~76VDC
12V / 1.3A
15.6W
  spec
  out
CCG15-48-15S
18~76VDC
15V / 1.0A
15.0W
  spec
  out
CCG15-48-12D
18~76VDC
24V / 0.65A
15.6W
  spec
  out
CCG15-48-15D
18~76VDC
30V / 0.5A
15.0W
  spec
  out
CCG30 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG30-24-03S
9~36VDC
3.3V / 7A
23.1W
  spec
  out
CCG30-24-05S
9~36VDC
5V / 6A
30.0W
  spec
  out
CCG30-24-12S
9~36VDC
12V / 2.5A
30.0W
  spec
  out
CCG30-24-15S
9~36VDC
15V / 2A
30.0W
  spec
  out
CCG30-24-12D
9~36VDC
24V / 1.25A
30.0W
  spec
  out
CCG30-24-15D
9~36VDC
30V / 1.0A
30.0W
  spec
  out
CCG30-48-03S
18~76VDC
3.3V / 7A
23.1W
  spec
  out
CCG30-48-05S
18~76VDC
5V / 6A
30.0W
  spec
  out
CCG30-48-12S
18~76VDC
12V / 2.5A
30.0W
  spec
  out
CCG30-48-15S
18~76VDC
15V / 2.0A
30.0W
  spec
  out
CCG30-48-12D
18~76VDC
24V / 1.25A
30.0W
  spec
  out
CCG30-48-15D
18~76VDC
30V / 1.0A
30.0W
  spec
  out
CCG15 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG15-24-12D
9~36VDC
±12V / ±0.65A
15.6W
  spec
  out
CCG15-24-15D
9~36VDC
±15V / ±0.5A
15.0W
  spec
  out
CCG15-48-12D
18~76VDC
±12V / ±0.65A
15.6W
  spec
  out
CCG15-48-15D
18~76VDC
±15V / ±0.5A
15.0W
  spec
  out
CCG30 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG30-24-12D
9~36VDC
±12V / ±1.25A
30.0W
  spec
  out
CCG30-24-15D
9~36VDC
±15V / ±1.0A
30.0W
  spec
  out
CCG30-48-12D
18~76VDC
±12V / ±1.25A
30.0W
  spec
  out
CCG30-48-15D
18~76VDC
±15V / ±1.0A
30.0W
  spec
  out
