  TDK-Lambda 한국대리점

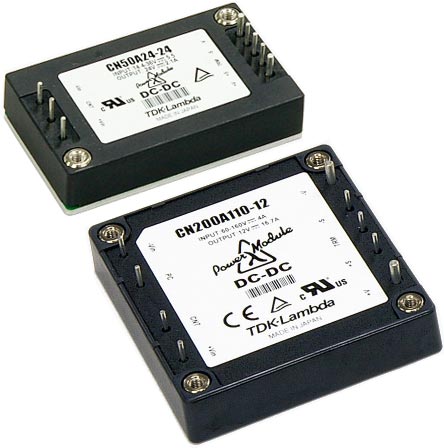

CN-A series
TDK-Lambda
Features
•  30 to 100W DC-DC Converters
•  Single Output / Isolated
•  DC-DC Converter for Railway
•  60~160VDC / 14.4~36VDC Input
•  Full Power from -40 to +100°C
•  5years free warranty
•
CN30A110 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CN30A110-5
60~160VDC
5V / 6A
30W
CN30A110-12
60~160VDC
12V / 2.5A
30W
CN30A110-15
60~160VDC
15V / 2A
30W
CN30A110-24
60~160VDC
24V / 1.3A
31.2W
CN50A110 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CN50A110-5
60~160VDC
5V / 10A
50W
CN50A110-12
60~160VDC
12V / 4.2A
50.4W
CN50A110-15
60~160VDC
15V / 3.4A
51.0W
CN50A-24
60~160VDC
24V / 2.1A
50.4W
CN100A110 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CN100A110-5
60~160VDC
5V / 20A
100W
CN100A110-12
60~160VDC
12V / 8.4A
100.8W
CN100A110-15
60~160VDC
15V / 6.7A
100.5W
CN100A110-24
60~160VDC
24V / 4.2A
100.8W
CN200A110 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CN200A110-5
60~160VDC
5V / 40A
200W
CN200A110-12
60~160VDC
12V / 16.7A
200.4W
CN200A110-15
60~160VDC
15V / 13.4A
201.0W
CN200A110-24
60~160VDC
24V / 8.4A
201.6W
CN50A24 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CN50A24-5
14.4~36VDC
5V / 10A
50W
CN50A24-12
14.4~36VDC
12V / 4.2A
50.4W
CN50A24-24
60~160VDC
24V / 2.1A
50.4W
CN100A24 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CN100A24-5
14.4~36VDC
5V / 20A
100W
CN100A24-12
14.4~36VDC
12V / 8.4A
100.8W
CN100A24-24
14.4~36VDC
24V / 4.2A
100.8W
