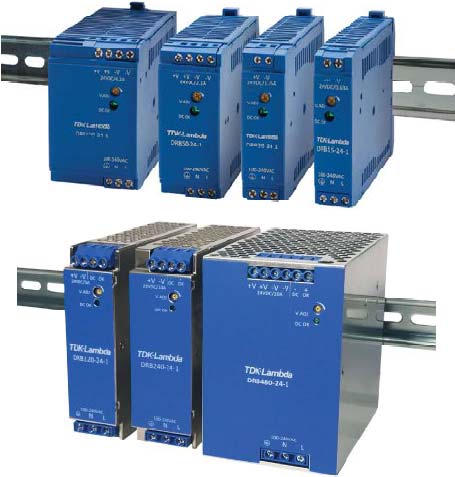

DRB series
TDK-Lambda
Features
•  15W, 30W, 50W, 100W, 120W 240W, 480W / Single output
•  Compact Size
•  High Efficiency (Up to 91%)
•  ErP Compliant Design
•  Low No Load Power Draw
•  Narrow Width
•  Curve B, Conducted & Radiated EMI
•  Up to 7 Year eCap-Life
•  3 Year Warranty
DRB15
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB15-24-1
24V
0.63A
15.10W
DRB30
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB30-12-1
12V
2.5A
30W
DRB30-24-1
24V
1.25A
30W
DRB50
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB50-5-1
5V
6.0A
30W
DRB50-12-1
12V(15V)
3.4A(3.4A)
40.8W(51W)
DRB50-24-1
24V
2.1A
50.4W
DRB50-48-1
48V
1.05A
50.4W
DRB100
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB100-24-1
24V
4.2A
100.8W
DRB120
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB120-24-1
24V
5A
120W
DRB240
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB240-24-1
24V
10A
240W
DRB480
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB480-24-1
24V
20A
480W
DRB480-48-1
48V
10A
480W
