  TDK-Lambda 한국대리점

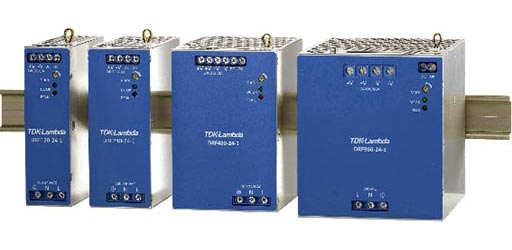

DRF series
TDK-Lambda
Features
•  120W, 240W, 480W, 960W / Single output
•  Very Compact Size
•  High Efficiency (Up to 94%)
•  150% Peak Power Capability for 4s
•  ErP Compliant Design
•  Low Standby Power Draw
•  Remote On/Of
•  Remote Voltage Adjustment
•  Hazardous Location Option (/HL)
•  5 Year Warranty
DRF120
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRF120-24-1
24V~28V
5.0A
120W
  spec
  out
DRF240
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRF240-24-1
24V~28V
10A
240W
  spec
  out
DRF480
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRF480-24-1
24V~28V
20A
480W
  spec
  out
DRF960
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRF960-24-1
24V~28V
40A
960W
  spec
  out
