  TDK-Lambda 한국대리점

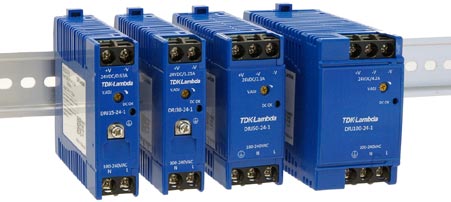

DRJ series
TDK-Lambda
Features
•  15W to 240W / Single output
•  Low Cost
•  UL 508 Listed
•  Convection Cooled
•  Conducted and Radiated EMI
•  Input Transient Protection, IEC61000-4
•  Conforms to EN61000-3-2 (PFC)
•  3 year warranty
DRJ15
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRJ15-24-1
24V
0.63A
15.1W
DRJ15-24-1/E
24V
0.63A
15.1W
DRJ30
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRJ30-5-1
5V
4A
20W
DRJ30-5-1/E
5V
4A
20W
DRJ30-12-1
12V
2.3A
27.6W
DRJ30-12-1/E
12V
2.3A
27.6W
DRJ30-24-1
24V
1.25A
30W
DRJ30-24-1/E
24V
1.25A
30W
DRJ50
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRJ50-12-1
12V
3.4A
40.8W
DRJ50-12-1.E
12V
3.4A
40.8W
DRJ50-24-1
24V
2.1A
50.4W
DRJ50-24-1/E
24V
2.1A
50.4W
DRJ100
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRJ100-24-1
24V
4.2A
100.8W
DRJ100-24-1/E
24V
4.2A
100.8W
DRJ100-24-1/C2
24V
3.75A
90W
DRJ100-24-1/C2E
24V
3.75A
90W
DRJ120
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRJ120-24-1
24V
5A (Peak 6A)
100.8W (Peak 144W)
DRJ120-24-1/E
24V
5A (Peak 6A)
100.8W (Peak 144W)
DRJ240
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRJ240-24-1
24V
10A (Peak 20A)
240W (Peak 288W)
DRJ240-24-1/E
24V
10A (Peak 20A)
240W (Peak 288W)
