  TDK-Lambda 한국대리점

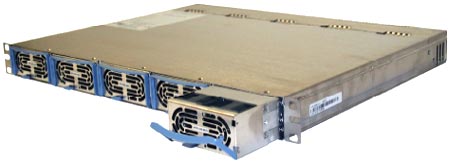

HFE1600 series
TDK-Lambda
Features
•  1U rackmount containing up to 5 units
•  Up to 29.2W/in³ power density
•  Internal ORing MOSFET & Current Share
•  High Efficiency
•  Up to 9,500W in 1U rack
•  PMBus™(I2C) and LAN options
HFE1600
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HFE1600-12
12V
133A
1596W
  spec
  out
HFE1600-12/S
12V
133A
1596W
  spec
  out
HFE1600-24
24V
67A
1608W
  spec
  out
HFE1600-24/S
24V
67A
1608W
  spec
  out
HFE1600-32
32V
47A
1500W
  spec
  out
HFE1600-32/S
32V
47A
1500W
  spec
  out
HFE1600-48
48V
33A
1584W
  spec
  out
HFE1600-48/S
48V
33A
1584W
  spec
  out
HFE1600 (19" Rack Mount Kit)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HFE1600-S1U
  spec
  out
HFE1600-S1U/TB
  spec
  out
