  TDK-Lambda 한국대리점

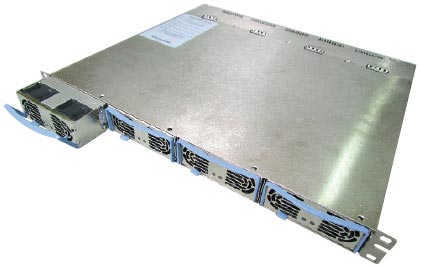

HFE2500 series
TDK-Lambda
Features
•  1U rackmount containing up to 4 units
•  Up to 29.2W/in³ power density
•  Internal ORing MOSFET & Current Share
•  High Efficiency
•  Up to 9,500W in 1U rack
•  PMBus™(I2C) and LAN options
HFE2500
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HFE2500-12
12V
200A
2400W
HFE2500-12/S
12V
200A
2400W
HFE2500-24
24V
104A
2496W
HFE2500-24/S
24V
104A
2496W
HFE2500-48
48V
52A
2496W
HFE2500-48/S
48V
52A
2496W
HFE2500 (19" Rack Mount Kit)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HFE2500-S1U
HFE2500-S1U/TB
