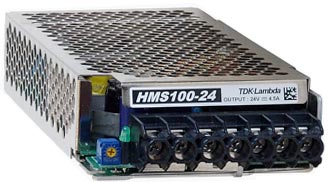

HMS series
TDK-Lambda
Features
•  50W - 150W / Single output
•  Input DC or Input AC
•  Input 85-265VAC(47-63Hz) or 80-370VDC
•  75-85VAC: Operation time within 20 seconds.
•
•
•
HMS50
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HMS50-5
5V
10A
50.0W
HMS50-12
12V
4.3A
51.6W
HMS50-15
15V
3.5A
52.5W
HMS50-24
24V
2.2A
52.8W
HMS50-48
48V
1.1A
52.8W
HMS80
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HMS80-5
3.3V
15A
80.0W
HMS80-12
12V
6.7A
80.4W
HMS80-15
15V
5.4A
81.0W
HMS80-24
24V
3.4A
81.6W
HMS80-48
48V
1.7A
81.6W
HMS100
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HMS100-5
5V
20A
100.0W
HMS100-12
12V
8.5A
102.0W
HMS100-15
15V
7A
105.0W
HMS100-24
24V
4.5A
108.0W
HMS100-48
48V
2.1A
100.8W
HMS150
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HMS150-5
5V
30A
150.0W
HMS150-12
12V
13A
156.0W
HMS150-15
15V
10A
150.0W
HMS150-24
24V
6.5A
156.0W
HMS150-48
48V
3.3A
158.4W
