  TDK-Lambda 한국대리점

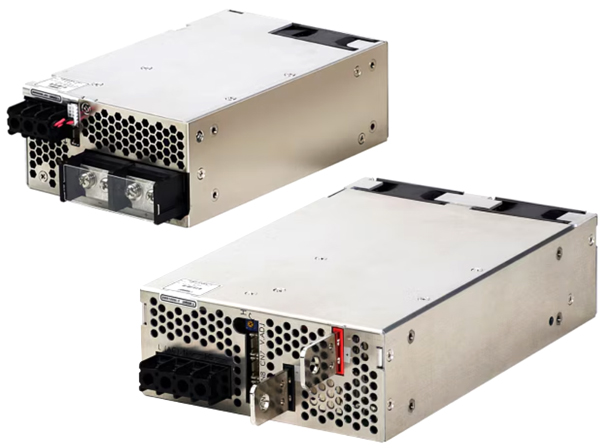

HWS-L series
TDK-Lambda
Features
•  600W to 1000W -Single Output
•  Low Cost
•  Active Power Factor Correction
•  Input Transient Protected IEC61000-4
•  Universal Input (85 - 265VAC)
•  SEMI F47 Compliant (208VAC)
•  Medical Approvals (HWS1000L)
HWS600L
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HWS600L-3
3.3V
120A
396W
  spec
  out
HWS600L-5
5V
120A
600W
  spec
  out
HWS600L-12
12V
53A
636W
  spec
  out
HWS600L-15
15V
43A
645W
  spec
  out
HWS600L-24
24V
27A
648W
  spec
  out
HWS600L-36
36V
18A
648W
  spec
  out
HWS600L-48
48V
13A
624W
  spec
  out
HWS600L-60
60V
10A
600W
  spec
  out
HWS1000L
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
HWS1000L-3
3.3V
200A
660W
  spec
  out
HWS1000L-5
5V
200A
1000W
  spec
  out
HWS1000L-12
12V
88A
1056W
  spec
  out
SWS1000L-15
15V
70A
1050W
  spec
  out
HWS1000L-24
24V
44A
1056W
  spec
  out
HWS1000L-36
36V
29A
1044W
  spec
  out
HWS1000L-48
48V
22A
1056W
  spec
  out
HWS1000L-60
60V
17A
1020W
  spec
  out
