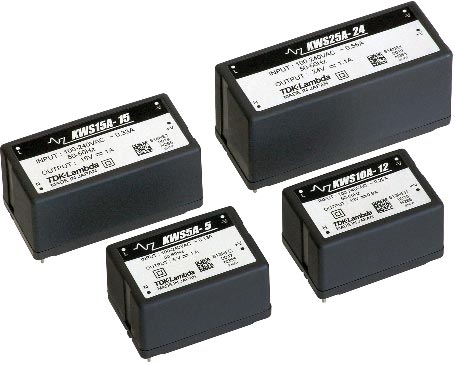

KWS-A series
TDK-Lambda
Features
•  5W to 25W / Single output
•  Wide Temperature Range -40 (start up) to +85°C
•  <0.5W Off -Load Power Draw
•  Effi ciencies up to 88%
•  Compact Sizes
•  Class II, No Ground Connection
KWS5A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS5A-5
5V
1.0A
5.0W
KWS5A-12
12V
0.45A
5.4W
KWS5A-15
15V
0.35A
5.3W
KWS5A-24
24V
0.22A
5.3W
KWS10A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS10A-5
5V
2.0A
10.0W
KWS10A-12
12V
0.9A
10.8W
KWS10A-15
15V
0.7A
10.5W
KWS10A-24
24V
0.5A
12.0W
KWS15A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS15A-5
5V
3.0A
15.0W
KWS15A-12
12V
1.3A
15.6W
KWS15A-15
15V
1.0A
15.0W
KWS15A-24
24V
0.7A
16.8W
KWS25A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS25A-5
5V
5.0A
25.0W
KWS25A-12
12V
2.2A
26.4W
KWS25A-15
15V
1.7A
25.5W
KWS25A-24
24V
1.1A
26.4W
KWS5A/KS (KS5 series PIn To Pin)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS5A-5/KS
5V
1.0A
5.0W
KWS5A-12/KS
12V
0.45A
5.4W
KWS10A/KS (KS10 series PIn To Pin)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS10A-5/KS
5V
2.0A
10.0W
KWS10A-12/KS
12V
0.9A
10.8W
KWS15A/KS (KS15 series PIn To Pin)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS15A-5/KS
5V
3.0A
15.0W
KWS15A-12/KS
12V
1.3A
15.6W
KWS5A/KW (KWS5 series PIn To Pin)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS5A-5/KW
5V
1.0A
5.0W
KWS5A-12/KW
12V
0.45A
5.4W
KWS5A-15/KW
15V
0.35A
5.25W
KWS10A/KW (KWS10 series PIn To Pin)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS10A-5/KW
5V
2.0A
10.0W
KWS10A-12/KW
12V
0.9A
10.8W
KWS10A-15/KW
15V
0.7A
10.5W
KWS15A/KW (KWS15 series PIn To Pin)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
KWS15A-5/KW
5V
3.0A
15.0W
KWS15A-12/KW
12V
1.3A
15.6W
KWS15A-15/KW
15V
1.0A
15.0W
