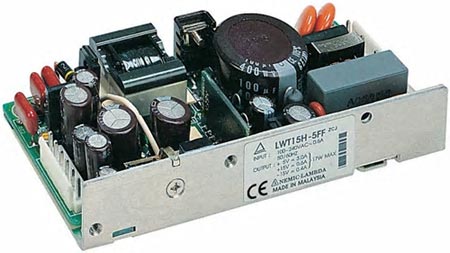

LWT-H series
TDK-Lambda
Features
•  15W, 30W, 50W
•  Triple Output
•  26mm height
•  Outputs 2 and 3 isolated from output 1
•  Universal input (85 - 265VAC)
•  Low profile
•  Wattbox design
LWT15H
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
LWT15H-522
+5V | +15V | -15V
0.5~3.0A | 0.6A | 0.4A
17W
LWT15H-5FF
+5V | +12V | -12V
0.5~3.0A | 0.6A | 0.4A
17W
LWT15H-525
+5V | +12V | -5V
0.5~3.0A | 0.6A | 0.4A
17W
LWT30H
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
LWT30H-522
+5V | +15V | -15V
0.7~5.0A | 1.2A | 0.6A
30W
LWT30H-5FF
+5V | +12V | -12V
0.7~5.0A | 1.2A | 0.6A
30W
LWT30H-525
+5V | +12V | -5V
0.7~5.0A | 1.2A | 0.6A
30W
LWT50H
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
LWT50H-522
+5V | +15V | -15V
1.0~8.0A | 1.5A | 1.0A
50W
LWT50H-5FF
+5V | +12V | -12V
1.0~8.0A | 1.5A | 1.0A
50W
LWT50H-525
+5V | +12V | -5V
1.0~8.0A | 1.5A | 1.0A
50W
