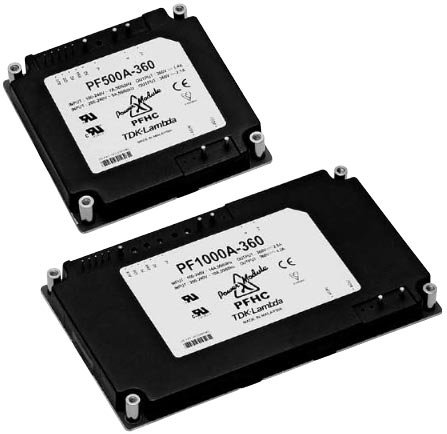

PF-A series
TDK-Lambda
Features
•  500W, 1000W / Single output
•  High power factor: 0.95
•  High efficiency: 90%
•  PFHC (Built to meet EN61000-3-2
•  N+1 parallel redundancy operation
•  Current sharing (load current balance)
•  IOG (inverter operation) monitoring signal
•  AUX (auxiliary) power output (for external signals)
•  Choke coil and inrush current protection circuit
•  Internal capacitor: Ceramic capacitor only (high reliability)
PF500SA
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PF500A-360
360V
1.4A / 2.1A
504W / 756W
PF1000A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PF1000A-360
360V
2.8A / 4.2A
1008 / 1512W
