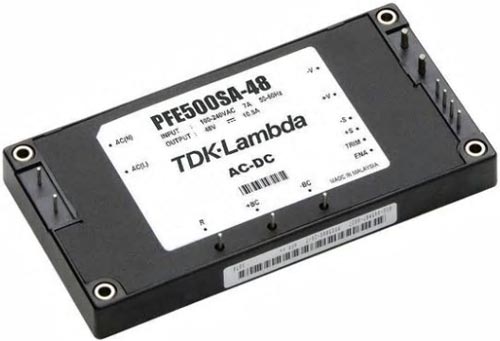

PFE-SA series
TDK-Lambda
Features
•  300W, 500W, 700W / Single output
•  Low profi le, small size
•  100°C baseplate temperature
•  High power density
•  High Effi ciency
•  Suitable for conduction cooling
•  Power Factor Corrected (PFC)
PFE300SA
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PFE300SA-12
12V
25A
300W
PFE300SA-28
28V
10.8A
302.4W
PFE300SA-48
48V
6.3A
302.4W
PFE500SA
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PFE500SA-12
12V
33A
396W
PFE500SA-28
28V
18A
504W
PFE500SA-48
48V
10.5A
504W
PFE500F
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PFE500F-12
12V
42A
504W
PFE500F-28
28V
18A
504W
PFE500F-48
48V
10.5A
504W
PFE700SA
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PFE700SA-48
51V
14A
714W
PFE1000FA
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
PFE1000FA-12
12V
60A
720W
PFE1000FA-28
28V
36A
1008W
PFE1000FA-48
48V
21A
1008W
