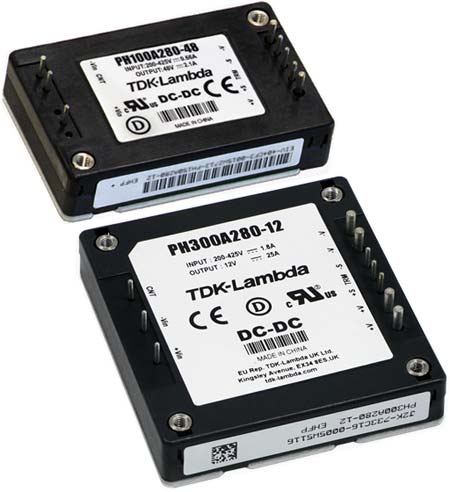

PH-A series
TDK-Lambda
Features
•  50 to 600W DC-DC Converters
•  Single Output
•  Wide Range 200 to 425Vdc Input
•  -40 to 100oC Baseplate Temperature
•  Certifi ed to IEC/EN62477-1 (OVC III)
•  Up to 93% Effi cient
•  No External Transformer Needed
PH50A (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PH50A280-5
200~425VDC
5V / 10A
50.0W
PH50A280-12
200~425VDC
12V / 4.2A
50.4W
PH50A280-24
200~425VDC
24V / 2.1A
50.4W
PH50A280-48
200~425VDC
48V / 1.1A
52.8W
PH75A (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PH75A280-3.3
200~425VDC
3.3V / 15A
49.5W
PH75A280-5
200~425VDC
5V / 15A
75.0W
PH75A280-12
200~425VDC
12V / 6.3A
75.6W
PH75A280-15
200~425VDC
15V / 5A
75.0W
PH75A280-24
200~425VDC
24V / 3.2A
76.8W
PH75A280-28
200~425VDC
28V / 2.7A
75.6W
PH75A280-48
200~425VDC
48V / 1.6A
76.8W
PH100A (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PH100A280-3.3
200~425VDC
3.3V / 20A
66W
PH100A280-5
200~425VDC
5V / 20A
100.0W
PH100A280-12
200~425VDC
12V / 8.4A
100.8W
PH100A280-24
200~425VDC
24V / 4.2A
100.8W
PH100A280-48
200~425VDC
48V / 2.1A
100.8W
PH150A (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PH150A280-12
200~425VDC
12V / 12.5A
150.0W
PH150A280-15
200~425VDC
15V / 10A
150.0W
PH150A280-24
200~425VDC
24V / 6.3A
151.2W
PH150A280-28
200~425VDC
28V / 5.4A
151.2W
PH150A280-48
200~425VDC
48V / 3.2A
153.6W
PH300A (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PH300A280-5
200~425VDC
5V / 60A
300.0W
PH300A280-12
200~425VDC
12V / 25A
300.0W
PH300A280-24
200~425VDC
24V / 12.5A
300.0W
PH300A280-28
200~425VDC
28V / 10.8A
302.4W
PH300A280-48
200~425VDC
48V / 6.3A
302.4W
PH600A (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PH600A280-24
200~425VDC
24V / 25A
600.0W
