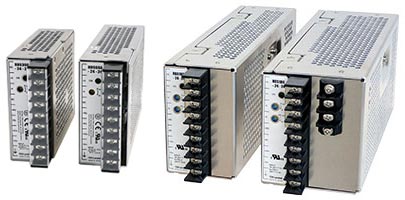

RDS series
TDK-Lambda
Features
•  유닛타입 DC-DC Converters
•  DC24V, 48V(30W,60W,100W,180) / DC110V (50W)
•  철도 표준에 대한 내 진동 및 충격 방지
•  철도 신호용 JIS E 3014, 3015 2-B (적합 설계)
•  철도 차량용 IEC61373 1-B (규격 설계, RDS50-110)
•
•
RDS30A-24 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS30A-24-5
18~32VDC
5V / 6.0A
30.0W
RDS30A-24-12
18~32VDC
12V / 2.5A
30.0W
RDS30A-24-15
18~32VDC
15V / 2.0A
30.0W
RDS30A-24-24
18~32VDC
24V / 1.3A
31.2W
RDS30A-48 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS30A-48-5
36~63VDC
5V / 6.0A
30.0W
RDS30A-48-12
36~63VDC
12V / 2.5A
30.0W
RDS30A-48-15
36~63VDC
15V / 2.0A
30.0W
RDS30A-48-24
36~63VDC
24V / 1.3A
31.2W
RDS50-110 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS50-110-5
60~143VDC
5V / 10.0A
50.0W
RDS50-110-12
60~143VDC
12V / 4.2A
50.4W
RDS50-110-15
60~143VDC
15V / 3.4A
51.0W
RDS50-110-24
60~143VDC
24V / 2.1d A
50.4W
RDS60A-24 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS60A-24-5
18~32VDC
5V / 12.0A
60.0W
RDS60A-24-12
18~32VDC
12V / 5.0A
60.0W
RDS60A-24-15
18~32VDC
15V / 4.0A
60.0W
RDS60A-24-24
18~32VDC
24V / 2.5A
60.0W
RDS60A-48 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS60A48-5
36~63VDC
5V / 12.0A
60.0W
RDS60A-48-12
36~63VDC
12V / 5.0A
60.0W
RDS60A-48-15
36~63VDC
15V / 4.0A
60.0W
RDS60A-48-24
36~63VDC
24V / 2.5A
60.0W
RDS100A-24 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS100A-24-5
18~32VDC
5V / 20.0A
100.0W
RDS100A-24-12
18~32VDC
12V / 8.3A
99.6W
RDS100A-24-15
18~32VDC
15V / 6.6A
99.0W
RDS100A-24-24
18~32VDC
24V / 4.2A
108.0W
RDS180A-24 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
RDS180A-24-5
18~32VDC
5V / 36.0A
180.0W
RDS180A-24-12
18~32VDC
12V / 15.0A
180.0W
RDS180A-24-15
18~32VDC
15V / 12.0A
180.0W
RDS180A-24-24
18~32VDC
24V / 7.5A
180.0W
