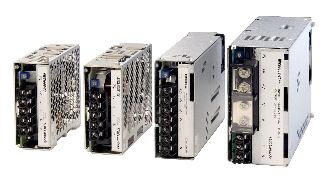

RWS-B series
TDK-Lambda
Features
• 50W to 1500W -Single Output
• 10 Year e-cap Lifetime
• 85 - 265VAC Input (300VAC for 5s)
• UL 508 Certification on Select Models
• Compact Size
• 7 year warranty
RWS50B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS50B-5
5V
10A
50W
RWS50B-12
12V
4.3A
51.6W
RWS50B-24
24V
2.2A
52.8W
RWS50B-48
48V
1.1A
52.8W
RWS100B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS100B-5
5V
14A
100.0W
RWS100B-12
12V
8.5A
102.0W
RWS100B-15
15V
6.8A
102.0W
RWS100B-24
24V
4.5A
108.0W
RWS100B-48
48V
2.1A
100.8W
RWS150B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS150B-5
5V
21A
105.0W
RWS150B-12
12V
13A
156.0W
RWS150B-15
15V
10A
150.0W
RWS150B-24
24V
6.5A
156.0W
RWS150B-28
28V
5.4A
151.2W
RWS150B-48
48V
3.3A
158.4W
RWS300B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS300B-5
5V
50A
250W
RWS300B-12
12V
25A
300W
RWS300B-15
15V
20A
300W
RWS300B-24
24V
12.5A
300W
RWS300B-36
36V
8.4A
302.4W
RWS300B-48
48V
6.3A
302.4W
RWS600B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS600B-5
5V
100A
500W
RWS600B-12
12V
50A
600W
RWS600B-15
15V
40A
600W
RWS600B-24
24V
25A
600W
RWS600B-36
36V
16.7A
601.2W
RWS600B-48
48V
12.5A
600W
RWS1000B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS1000B-12
12V
84A
1008W
RWS1000B-15
15V
67A
1005W
RWS1000B-24
24V
42A
1008W
RWS1000B-36
36V
28A
1008W
RWS1000B-48
48V
21A
1008W
RWS1500B
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RWS1500B-12
12V
125A
1500W
RWS1500B-15
15V
100A
1500W
RWS1500B-24
24V
63A
1512W
RWS1500B-36
36V
42A
1512W
RWS1500B-48
48V
32A
1536W
