  TDK-Lambda 한국대리점

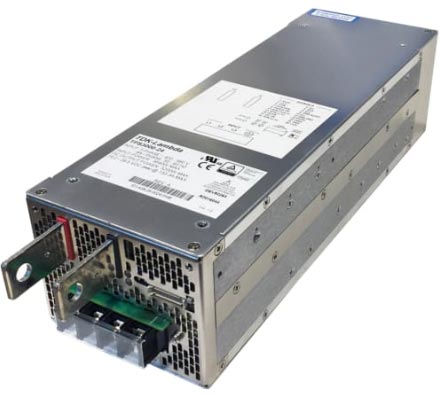

TPS series
TDK-Lambda
Features
•  400/440/480 VAC (Nominal) 3 Phase Delta or Wye
•  Fully Regulated, Wide Range Adjustable Output
•  Voltage and Current Programming
•  -40°C (start up) to +70°C operation
•  >92% Effi ciency
•  PMBus™ Communication
•  Built in ORing FETs & Active I share for parallel operation
TPS3000
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
TPS3000-24
24V(19.2~28.5V)
125A
3000W
  spec
  out
TPS3000-48
48V(38.4~56.5V)
66.7A
3200W
  spec
  out
TPS4000
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
TPS4000-24
24V(19.2~28.5V)
166A
4000W
  spec
  out
TPS4000-48
48V(38.4~58V)
83.3A
4000W
  spec
  out
