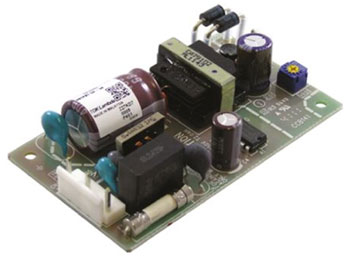

ZWS-B series
TDK-Lambda
Features
•  10W, 15W, 30W, 50W, 75W, 100W, 150W / Single output
•  Operating temp -10¡ÆC to +70¡ÆC
•  Low off-load power draw (<0.5W)
•  10 Year e-cap Lifetime
•  Universal Input (85 - 265VAC)
•  Suitable for 'Green' products
•  5 year warranty

[OPTION]
•  None : Standard type(Open frame)
•  /L : L-bracket
•  /A : L-bracket & cover
•  /CO2 : Double sided PCB coating

ZWS10B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS10B-3
3.3V
2.0A
6.6W
ZWS10B-5
5V
2.0A
10.0W
ZWS10B-12
12V
0.9A
10.8W
ZWS10B-15
15V
0.7A
10.5W
ZWS10B-24
24V
0.5A
12.0W
ZWS15B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS15B-3
3.3V
3.0A
9.9W
ZWS15B-5
5V
3.0A
15.0W
ZWS15B-12
12V
1.3A
15.6W
ZWS15B-15
15V
1.0A
15.0W
ZWS15B-24
24V
0.7A
16.8W
ZWS30B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS30B-3
3.3V
6.0A
19.8W
ZWS30B-5
5V
6.0A
30.0W
ZWS30B-12
12V
2.5A
30.0W
ZWS30B-15
15V
2.0A
30.0W
ZWS30B-24
24V
1.3A
31.2W
ZWS50B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS50B-3
3.3V
10A
33.0W
ZWS50B-5
5V
10A
50.0W
ZWS50B-12
12V
4.3A
51.6W
ZWS50B-15
15V
3.5A
52.5W
ZWS50B-24
24V
2.1A
50.4W
ZWS50B-48
48V
1.1A
52.8W
ZWS75B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS75B-3
3.3V
15A
49.5W
ZWS75B-5
5V
15A
75.0W
ZWS75B-12
12V
6.3A
75.6W
ZWS75B-15
15V
5.0A
75.0W
ZWS75B-24
24V
3.2A
76.8W
ZWS75B-48
48V
1.6A
76.8W
ZWS100B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS100B-3
3.3V
20A
66.0W
ZWS100B-5
5V
20A
100.0W
ZWS100B-12
12V
8.5A
102.0W
ZWS100B-15
15V
6.7A
100.5W
ZWS100B-24
24V
4.3A
103.2W
ZWS100B-48
48V
2.1A
100.8W
ZWS150B
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS150B-3
3.3V
30A
99.0W
ZWS150B-5
5V
30A
150.0W
ZWS150B-12
12V
12.5A
150.0W
ZWS150B-15
15V
10A
150.0W
ZWS150B-24
24V
6.3A
151.2W
ZWS150B-48
48V
3.2A
153.6W
