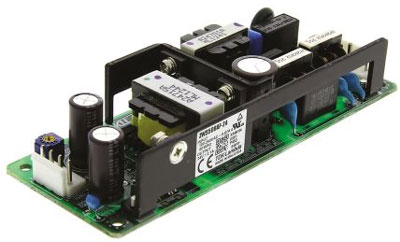

ZWS-BAF series
TDK-Lambda
Features
•  50W - 300W / Single output
•  Universal input (85 - 265VAC)
•  10 Year e-cap Lifetime
•  Power Factor Corrected
•  Convection Cooled
•  Compact Design
•  5 year warranty
ZWS50BAF
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS50BAF-3
3.3V
10A
33.0W
ZWS50BAF-5
5V
10A
50.0W
ZWS50BAF-12
12V
4.3A
51.6W
ZWS50BAF-15
15V
3.5A
52.5W
ZWS50BAF-24
24V
2.1A
50.4W
ZWS50BAF-48
48V
1.1A
52.8W
ZWS75BAF
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS75BAF-3
3.3V
15A
49.5W
ZWS75BAF-5
5V
15A
75.0W
ZWS75BAF-12
12V
6.3A
75.6W
ZWS75BAF-15
15V
5.0A
75.0W
ZWS75BAF-24
24V
3.2A
76.8W
ZWS75BAF-48
48V
1.6A
76.8W
ZWS100BAF
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS100BAF-3
3.3V
20A
66.0W
ZWS100BAF-5
5V
20A
100.0W
ZWS100BAF-12
12V
8.5A
102.0W
ZWS100BAF-15
15V
6.7A
100.5W
ZWS100BAF-24
24V
4.3A
103.2W
ZWS100BAF-48
48V
2.1A
100.8W
ZWS150BAF
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS150BAF-3
3.3V
30A
99.0W
ZWS150BAF-5
5V
30A
150.0W
ZWS150BAF-12
12V
12.5A
150.0W
ZWS150BAF-15
15V
10A
150.0W
ZWS150BAF-24
24V
6.3A
151.2W
ZWS150BAF-48
48V
3.2A
153.6W
ZWS300BAF
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWS300BAF-12
12V
25.0A
300.0W
ZWS300BAF-15
15V
20A
300.0W
ZWS300BAF-24
24V
12.5A
300.0W
ZWS300BAF-36
36V
8.4A
302.4W
ZWS300BAF-48
48V
6.3A
302.4W
